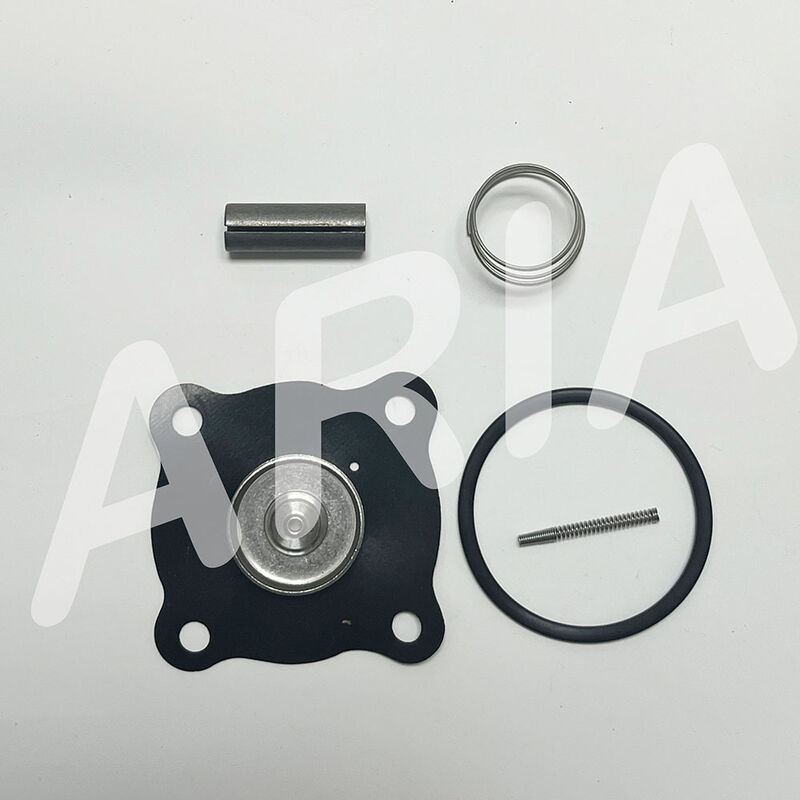

SCE210D002 ASCO Diaphragm K302273 C302373 1/2 Inch 8210G002 Water Valve Solenoid Valve

Product Description:

The standard material used for the core diaphragm is NBR (nitrile butadiene rubber). Additionally, FPM (fluororubber) and EPDM (ethylene propylene diene monomer) are available as alternative options. This variety allows the diaphragm to be suitable for different media and working conditions. It boasts excellent sealing properties and resistance to oil, operating effectively within a temperature range of -20℃ to +85℃.

The sealing parts include O-rings and gaskets, most of which are fabricated from materials that match the diaphragm, such as NBR. This ensures consistent and reliable static and dynamic sealing, effectively preventing leakage of the medium.

Diaphragm support plates along with springs made from stainless steel—commonly grade 304—provide necessary reset force and structural integrity. These components are designed to offer high corrosion resistance and strong fatigue endurance, contributing to the overall durability of the valve assembly.

Various fasteners like fixing clamps, core tube assemblies, and gaskets are utilized to position and assemble components securely. Most of these parts are manufactured from stainless steel or metals with anti-corrosion coatings to guarantee stable installation and long-term operational reliability.

The compatible valves do not have a minimum operating pressure requirement. Typically, the differential pressure range aligns with that of the SCE210 series, accommodating low to medium pressure working conditions. For precise parameters, refer to the specific valve specifications.

The system supports fluids with a viscosity up to 65 cSt, including air, inert gases, water, and mineral oils. Safe operation is ensured provided the media is compatible with the sealing materials used.

Following repair, the valve maintains a response time between 15 and 120 milliseconds, meeting the dynamic performance standards of the original valve design.

The components are compatible with coils rated to IP65 protection standards. Moreover, they adhere to certifications such as CE and ATEX, guaranteeing both electrical and mechanical safety.

The core function of these components is to replace worn or damaged diaphragms and sealing parts. This replacement resolves issues like internal or external valve leakage and stuck mechanisms, thereby restoring the valve's shut-off accuracy and operational reliability.

Installation is flexible, supporting any angle, and comes with comprehensive installation and maintenance instructions in the kit. The replacement process is designed to be quick and does not require specialized or complex tools.

Original components are engineered for a long service life, capable of enduring hundreds of thousands to millions of operational cycles under normal conditions. This durability helps reduce maintenance frequency and associated downtime.

Technical Parameters:

Applications:

The ASCO Pulse Valve Diaphragm is an essential component designed for reliable performance in various industrial and commercial applications. Renowned for its durability and precision, this diaphragm serves as a critical diaphragm repair accessory, ensuring optimal functionality and longevity of pulse valves used in dust collectors, pneumatic systems, and fluid control mechanisms. Manufactured using high-quality Nitrile Rubber and VITON materials, the diaphragm offers exceptional chemical resistance against oil, acid, and solvents, making it suitable for harsh environments where exposure to aggressive substances is common.

One of the primary application occasions for the ASCO Pulse Valve Diaphragm is in the maintenance and repair of pump systems. It is an integral part of the pump diaphragm repair kit, which allows technicians to efficiently replace worn or damaged diaphragms, restoring pump performance without the need for complete system replacement. The robust construction and superior service life, ranging from 100,000 to over a million cycles, ensure long-term reliability and reduced downtime in operations such as water treatment, chemical processing, and pneumatic conveying.

In scenarios where rapid delivery and flexible payment terms are crucial, ASCO provides a competitive advantage with a minimum order quantity of just one piece, packaging details secured in durable cartons, and delivery within 1-7 workdays after payment. Customers can negotiate prices and choose from multiple payment options including T/T, Western Union, and PayPal, facilitating smooth procurement processes. The supply ability of 5000 pieces per month ensures consistent availability for both small-scale repairs and large industrial projects.

Protection and certification standards like IP65 and CE ATEX highlight the diaphragm’s suitability for use in explosive atmospheres and environments requiring dust and water resistance. This makes the ASCO Pulse Valve Diaphragm an ideal choice for industries such as pharmaceuticals, food processing, mining, and chemical manufacturing, where compliance with stringent safety and quality standards is mandatory.

Ultimately, the ASCO Pulse Valve Diaphragm is a reliable, chemically resistant, and certified diaphragm repair accessory that supports efficient maintenance through pump diaphragm repair kits. Its versatility and quality assure optimal performance in diverse application occasions and scenarios, meeting the demanding needs of modern industrial operations.

Packing and Shipping:

Product Packaging and Shipping for Pulse Valve Diaphragm

Each pulse valve diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragms are first wrapped in anti-static and moisture-resistant materials to prevent any damage from environmental factors.

They are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations. Multiple units are securely arranged to avoid movement inside the packaging.

For bulk orders, the boxes are consolidated into larger cartons or wooden crates, depending on the quantity and shipping requirements.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics operations.

We offer various shipping options including air freight, sea freight, and express courier services to meet delivery deadlines and customer preferences.

Tracking information is provided promptly after dispatch, ensuring transparency and allowing customers to monitor their shipment status in real time.

Our commitment is to deliver the pulse valve diaphragms safely and efficiently, maintaining product integrity from our facility to your doorstep.
