Markenname: | GOYEN |
Zertifizierung: | CE |
Modellnummer: | RCA45T |
Minimum Order Quantity: | 1 |
---|---|
Preis: | Verhandlungsfähig |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Zahlungsbedingungen: | T/T, Western Union, Paypal |
Supply Ability: | 5000 Pieces/1Month |
Zwerchfellmaterial: | NBR, FKM | Ventilserie:: | T -Serie |
---|---|---|---|
Arbeitsdruckbereich: | 0,35 bis 0,85 MPa | Pilotgröße: | 1/8 '', 1/4 '' |
Hafengröße:: | 1-1/2 '' ' | Ventilstruktur: | Rechtwinkel, Gewindeanschluss |
Hervorheben: | 1.5-inch electromagnetic pulse valve,right angle pulse jet valve,diaphragm pulse valve with warranty |
Pulse Jet valve is a type of valve that converts a continuous input signal into a pulsed signal by utilizing the delay caused by gas passing through gas resistance and gas capacity.
The internal design of the air inlet in the right angle pulse jet valve, along with the installation and application of the positioning steel ring, helps to prevent loosening from inertial impact and ensures precise installation positioning simultaneously.
Even after extensive usage, the stainless steel nut remains effective in facilitating easy disassembly and reassembly.
Bag filter pulse cleaning system
Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.
Applicable equipment:

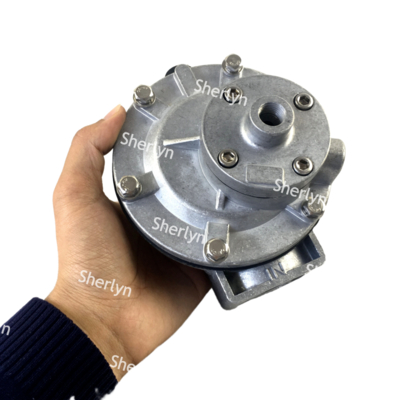

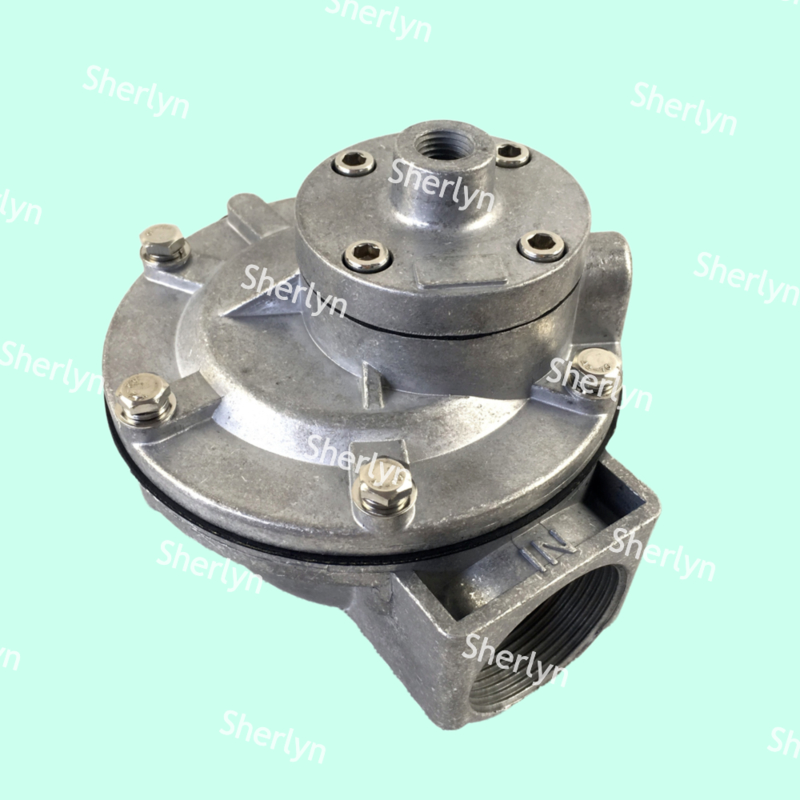

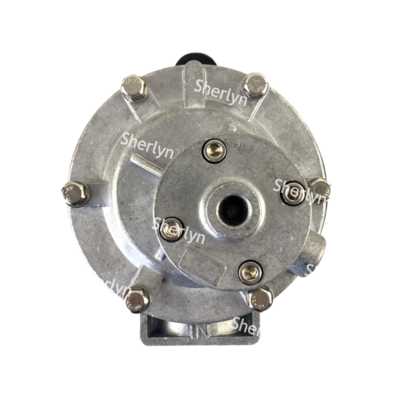

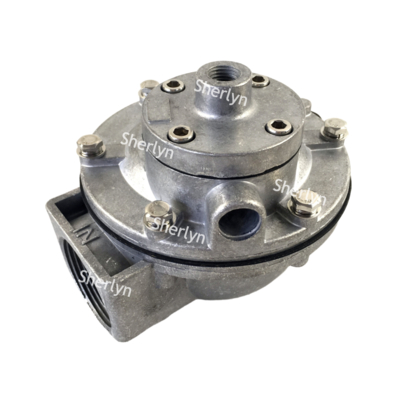

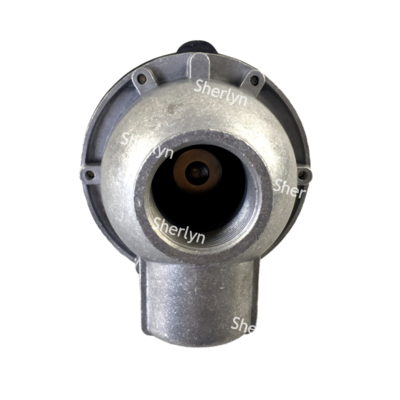

1 1/2'' RCA45T Goyen Type Remote Pilot Pulse Jet Valve For Dust Collector
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Threaded Type
2. Manifold Flat Mount Type
3. Dresser Nut Type
4. Straight Through Type
5. Flanged Type
Model No | RCA15T | RCA20T | RCA25T | RCA35T | RCA45T | RCA50T | RCA62T | RCA76T |
Orifice Size | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 |
(mm) | ||||||||
Port Size | 1/2'' | 3/4'' | 1'' | 1 1/2'' | 1 1/2'' | 2'' | 2 1/2'' | 3'' |
Pilot Size | 1/8'', 1/4'' | |||||||
Diaphragm Number | 1 | 2 | ||||||
Working pressure | 5 to 125 psi | |||||||
Diaphragm Material | NBR, FKM | |||||||
Body Material | Aluminum (diecast) | |||||||
Valve Structure | Right Angle (Outlet is at 90° to Inlet) |
Our Product Technical Support and Services for the Pulse Jet Valves include:
- Assistance with installation and setup
- Troubleshooting and diagnosis of issues
- Maintenance recommendations and schedules
- Repair and replacement services
- Training and educational resources for optimal operation
Product Packaging:

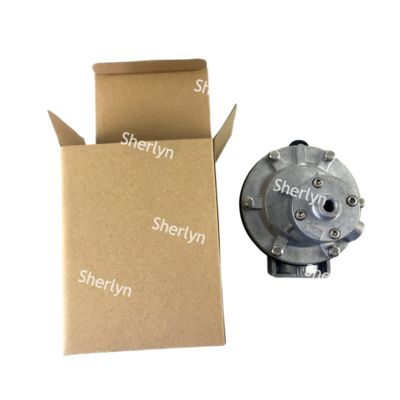

The Pulse Jet Valves are securely packaged in strong cardboard boxes to ensure safe delivery. Each valve is individually wrapped in protective material to prevent any damage during transportation.
Shipping Information:
We offer worldwide shipping for the Pulse Jet Valves. Orders are processed within 1-2 business days and shipped using reliable courier services. Customers will receive a tracking number to monitor the delivery status of their order.
